Reporting Functions

Reporting-Functions

Brief Description

With the help of the built-in template concept reports can be created in MS Excel very fast and simple. There is also a “Life Reporting” function available, which enables the positioning of timeseries data at any point of the reports for individual evaluations. By using these functions, timeseries values can be read to Excel free from the typical TSM format.

Functional Description

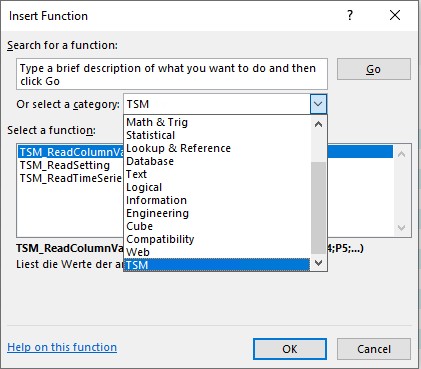

The TSM reporting functions can be accessed like all Excel functions by opening the formula assistant in Excel. The three functions can be selected by choosing the category “TSM”:

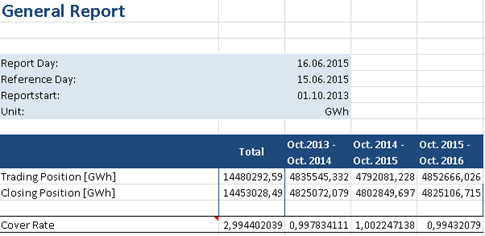

Report Example

TSM_ReadColumnValues

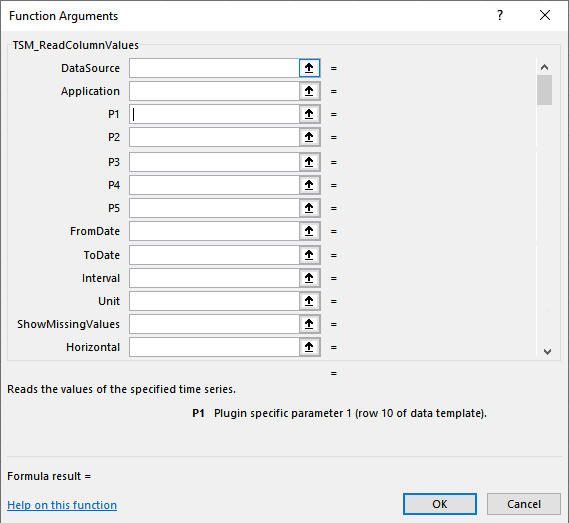

This function is the most extensive TSM Reporting Function. It provides all possibilities of the function TSM_ReadTimeSeriesValues and includes some additional options. It reads values of time series to Excel but can also manage formulas like peak or max. Parameters like the time period where values are read from or the interval can be stated by directly entering them into the function assistant or relatively by entering Excel fields, where the value shall be taken from.

Field	Description
DataSource	State the DB where the timeseries is saved.
Applications	State the timeseries name, where values shall be read out
P1-P5	Parameters can be entered, which are usually defined in the Excel fields C10-C14. (P1=C10...P5=C14)
FromDate	Start date of the time period from which values shall be read out. Format: DD.MM.YYYY
ToDate	End date of the time period from which values shall be read out. Format: DD.MM.YYYY
Interval	Interval in which values shall be read out: Half Year = -10 Year= -8 Quarter= -7 Month= -6 Week= -5 Day= -4 Hour= -3 Half Hour= -2 Quarter Hour= -1
Unit	Select the desired unit which shall be read out. If the unit from the data base shall be taken enter “DB”. If for example the timeseries is saved in KWH and GWH is selected, KWH is converted to GWH.
ShowMissingValues	Shall missing values be shown? Yes = “True”; No = “False”
Horizontal	Shall values be displayed in Excel horizontally or vertically? Horizontally = “True”; Vertically = “False”

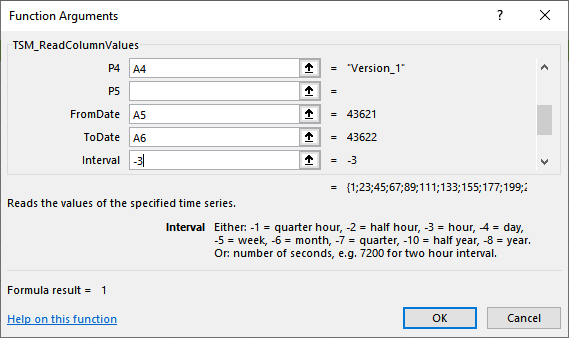

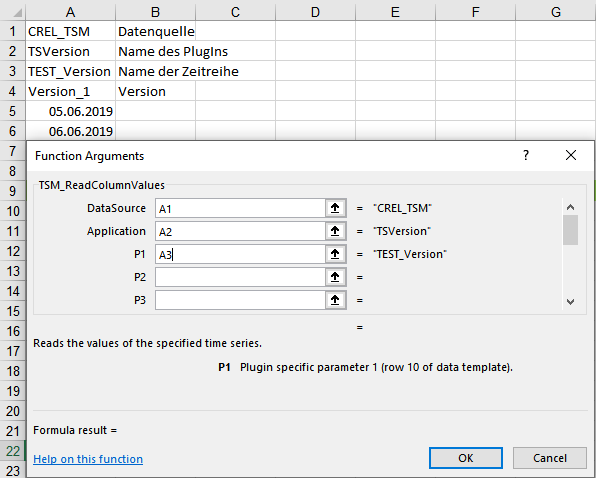

Example: Read Values from Version Time Series

Example_Report_Functions.xlsx

Display Several Intervals Next to Each Other

Several intervals (e.g. January, February, March, April, June) can be displayed next to each other (horizontally or vertically). Enter one TSM function in an Excel field and copy it vertically or horizontally. Afterwards, select all fields, where the values shall be entered. Insert the function and press Ctrl+Shift+Enter. This creates an array, which automatically applies the respective intervals to the fields.

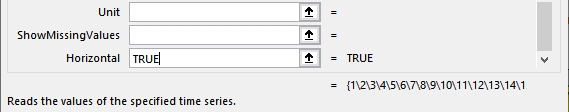

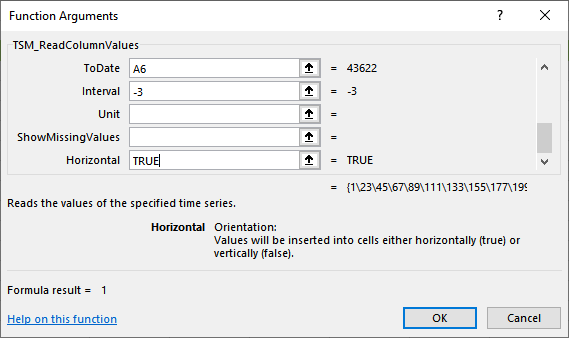

Please note: If the Excel fields are arranged horizontally, the value for “Horizontal” in the TSM Reporting Function has to be “TRUE”. If the Excel fields are arranged vertically, the value for “Horizontal” in the TSM Reporting Function has to be “False”.

TSM_ReadTimeSeriesValues

This function is a ‘light’ version of TSM_ReadColumnValues. It provides fewer options but works exactly the same. Please see chapter TSM_ReadColumnValues for more information.

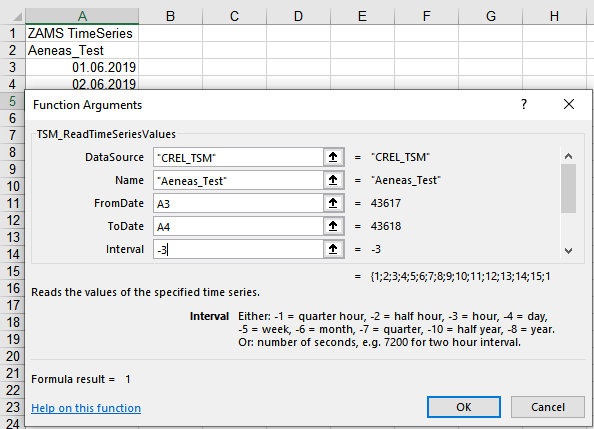

Example
