Starting TSM

TSM App

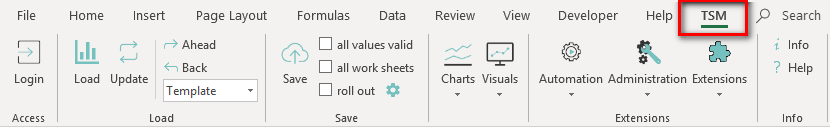

When successfully installed, the "TSM" tab should be shown in the top-right of the Excel toolbar:

After logging in using the leftmost button, this button changes to a "Logout" button which can be used to end your session.

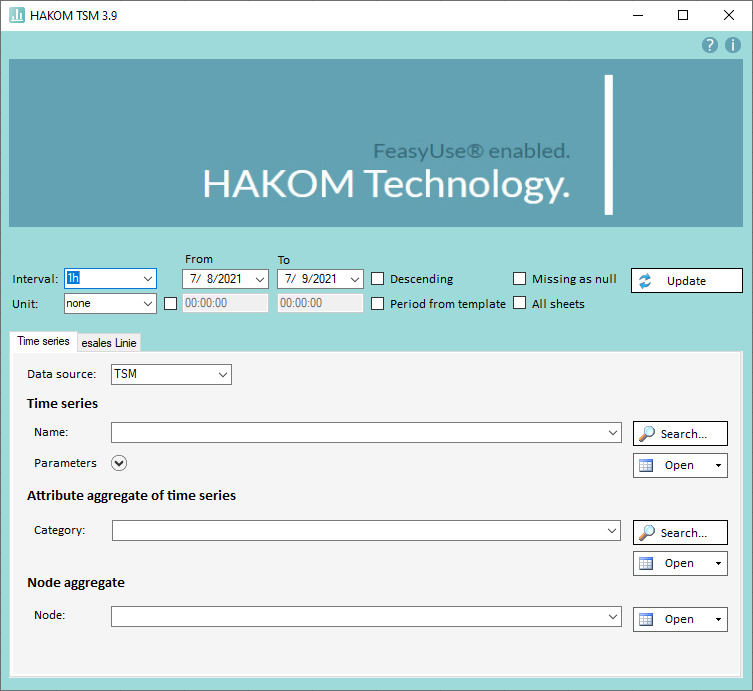

By running any of the TSM's functions you will be logged in automatically. E.g. if you click on "Load" you will be logged in automatically and afterwards the TSM Mask will be opened:

If this mask is closed via the "X" button in the top right corner or via [Alt] + [F4] the changes made to the form (like the selected time series) are preserved for when the TSM is opened again later.

TSM+

The TSM+ application can be started without Microsoft Excel using the executable file "HAKOM.TSMPlus.exe". The same functions are available here as in the TSM Excel add-in, however there are minor differences regarding the arrangement of control elements.

By clicking the button "HAKOM TSM" the login is executed and the Time Series plug-in is opened.

The interface of the Time Series plug-in in TSM+ is identical to the TSM app:

Some of the ribbons known from Microsoft Excel are also available as buttons in the menu bar when using TSM+.

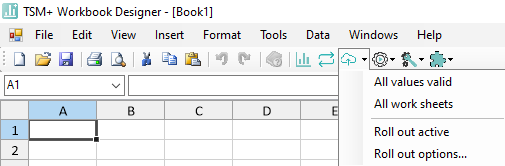

The options for saving data, which are available as checkboxes in the Microsoft Excel Ribbons, can be accessed via the menu bar:

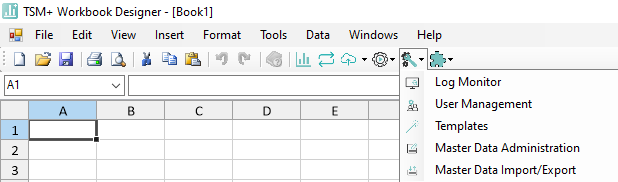

Other plug-ins can also be accessed via the selection lists of the respective group in the menu bar:
