Building WebTSM Services Extensions

Introduction

On this page you find a short description how to implement your own custom WebTSM Services extension.

How to Build a New WebTSM Services Extension

1. Create a new Class Library Project in Visual Studio and select .NET 5.0 as Target Framework

2. Add NuGet Package "HAKOM.Framework.Services"

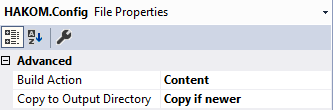

3. Add HAKOM.Config and HAKOM.License to the Project and set the following FileProperties for each file:

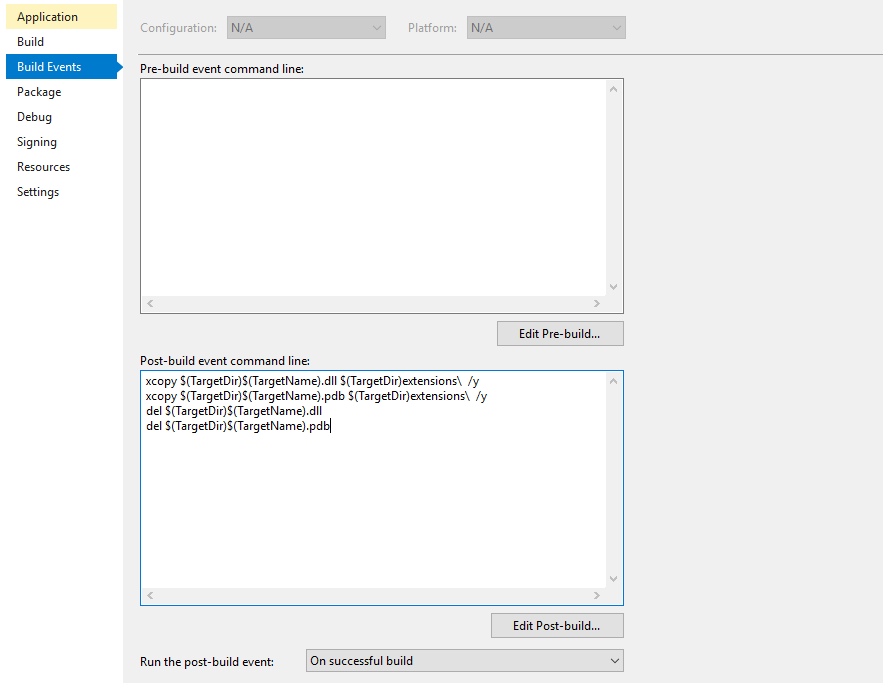

4. Edit Project Properties → Build Events


   PowerShell

   xcopy "$(TargetDir)$(TargetName).dll" "$(TargetDir)extensions\" /y
   xcopy "$(TargetDir)$(TargetName).pdb" "$(TargetDir)extensions\" /y
   del "$(TargetDir)$(TargetName).dll"
   del "$(TargetDir)$(TargetName).pdb"





5. Edit your csproj file and add the following target

   XML

   <Target Name="DotNetPublish" AfterTargets="PostBuild">
       <Exec Command="dotnet publish --no-build -f net5.0 -o "$(TargetDir)"" />
   </Target>

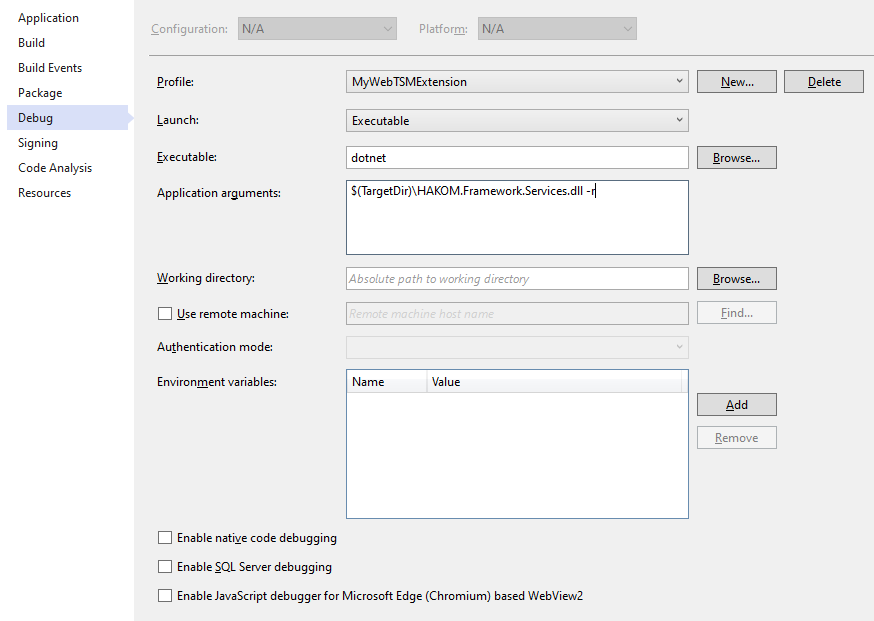

6. Edit Project Properties → Debug




7. Create your WebTSM Services Extension Controller Class:

   C#

   using System;
   using HAKOM.Framework.Services.Extensibility;
   using Microsoft.AspNetCore.Mvc;

   namespace MyWebTSMExtension
   {
   	[WebTSMServiceExtension(Name: "mwe")]
   	public class MWExtensionController : ExtensionBaseController
   	{
   		[Route("foo")]
   		public IActionResult DoSomething([FromQuery]string param1)
   		{
   			return Ok("whatever");
   		}
   	}
   }





8. Start Debugging and call your new Extension Method via GET "{ServiceURL}/extensions/mwe/foo"
