Importing Data from KISS-A Formatted Files

Assigning a Time Series a Schedule via Attributes

In TSM time series are assigned KISS-A schedules via attributes:

  • KISSASeller represents the sender, row 4 of the KISS-A-file.

  • KISSABuyer represents the receiver, row 5 of the KISS-A-file.

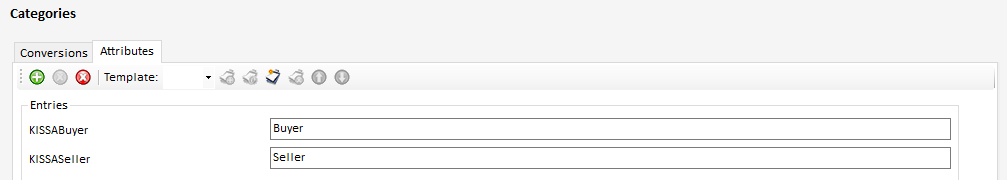

The target time series must have these two attributes with the respective values assigned to it:

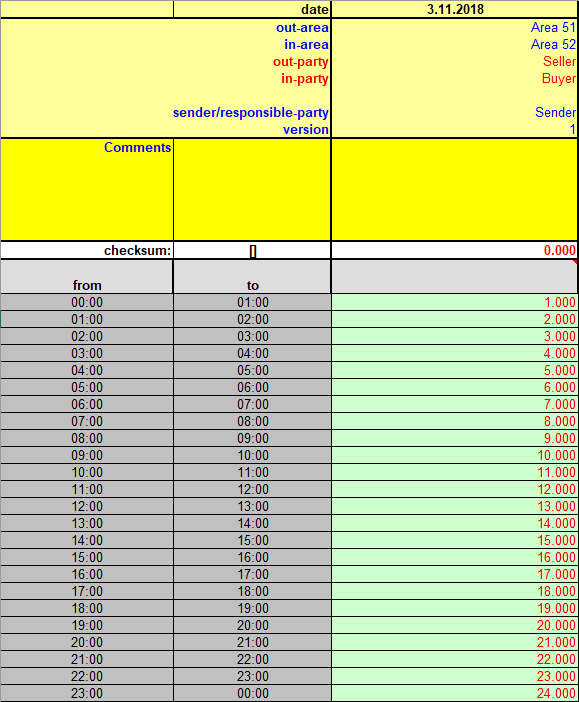

In Column C, the sender is "Seller" and the receiver is "Buyer". The attribute assignment is:


Importing the Data

Saving the data works as usual via the "Save"-Ribbon or the "Save to DB"-Tab. TSM will search for the time series, with the matching Seller-Buyer pair assigned and saves the data.

Attention: The database connection is not stated in the KISS-A file. Therefore two elements have to be set in the HAKOM.Config:

  • <KISSAImportPlugIn /> is set to a time series plug-in

  • <KISSAImportConnection /> is set to a valid database connection
