Master Data Import and Export

Time series master data can be read to or from Excel by pressing the buttons “Export” respectively “Import”. This eases editing of time series master data as well as creating time series.

You can open the Plug-in via the button from the "Administration" ribbon:

Time Series Master Data Export

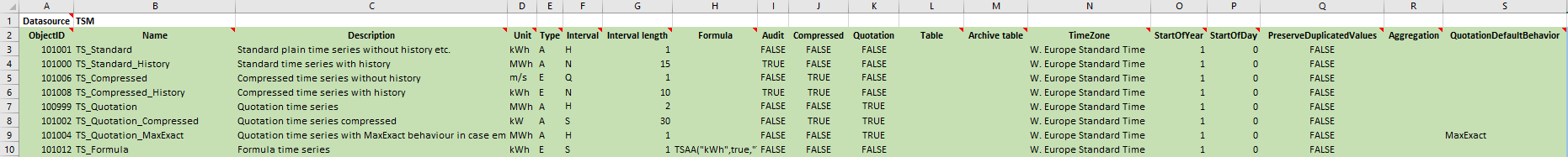

Clicking the "Export" button will open the Time Series Search window where you can search the time series that are to be exported. For reading time series master data to Excel, select the desired time series in the spread sheet and press “OK” in the “Add selection to application” field.

Time Series Master Data Import

Time series master data can be imported from currently active Excel sheets. Therefore it is required that the format in the Excel sheet to be imported corresponds to the format used for the export.

Time Series Master Data – Table Fields

The fields from this table are mandatory for a master data import. When it comes to attributes additional fields have to be used. These are shown and explained in the template, which can be opened by clicking on "Import template with data examples".

Field	Mandatory	Description	Possible Values	Example
ObjectID	Only if the definition of a existing time series is edited	Unique ID of the specific time series master data set.
Name	yes	Unique name of a time series
Description		Description of the time series
Unit	yes	The unit of the time series
Type	yes	The type of the time data	A = time series with left notation E = time series with right notation S = spontaneous time series
Interval	yes	Time resolution	S = Second N = Minute H = Hour D = Day W = Week M = Month Q = Quarter Y = Year
Interval length	yes	Length of an interval
Formula		Formula to calculate a time series' data		You can find examples of formulas under Formula Time Series
Table		The data table for the time series
Archive table		The archive data table for the time series
TimeZone		Name of the time zone. Besides the time zones supported by Microsoft, there are several time zones defined by HAKOM.	For a list of time zones supported by Microsoft, see https://support.microsoft.com/en-us/help/973627/microsoft-time-zone-index-values. A list of HAKOM specific time zones can be found under Reading Data into Excel	W. Europe Standard Time
StartOfYear		Value by which the interval is shifted (in months).	1-12
StartOfDay		Value by which the interval is shifted (in hours from midnight on).	0-23
PreserveDuplicatedValues		Defines whether identical consecutive values are stored (TRUE) or not (FALSE) in spontaneous time series when saving.	TRUE FALSE
Aggregation		Determines which method is used to aggregate time series data.	Sum Addition of the values of the points in the specified time range (time periods are not taken into account). Average Arithmetic mean of the values of the points in the specified time range (weighted by validity period). (Values and their time range with flag "No Value" are not taken into account). Min The smallest value in the specified period. (No Value has no value and can only be the result of Min if the whole time segment contains only No Value values.) Max The highest value in the specified period. (No Value has no value and can only be the result of Max if the whole time segment contains only No Value values.) MostFrequently The first longest valid value per interval. AtTheMoment The value at a time t using the underlying function f(t) of the time series (internal representation of discrete values over time). AbsMin The minimum value (corresponds to the Min function) of the absolute values of the time series. AbsMax The maximum value (corresponds to the Max function) of the absolute values of the time series.
QuotationDefaultBehavior		Defines the standard behavior when reading quotation time series if no quotation date has been set. If a value is entered here, it overrules the one set in the HAKOM.Config.	1 (MaxExact) The latest quotation date for the time domain will be determined and only data for this date will be read. 2 (MaxNotExact ) Data from the time domain will be read with the respective latest quotation date. 3 (NowNotExact) Data from the time domain wll be read with the respective latest quotation date but earlier than the current time. Null If the cell is empty, the value from HAKOM.Config is used.

When time series master data is imported, the TSM differentiates between entries which have already existed in the data base and have just been edited (after an export) or if new entries shall be created in the data base.

Import of New Time Series Master Data

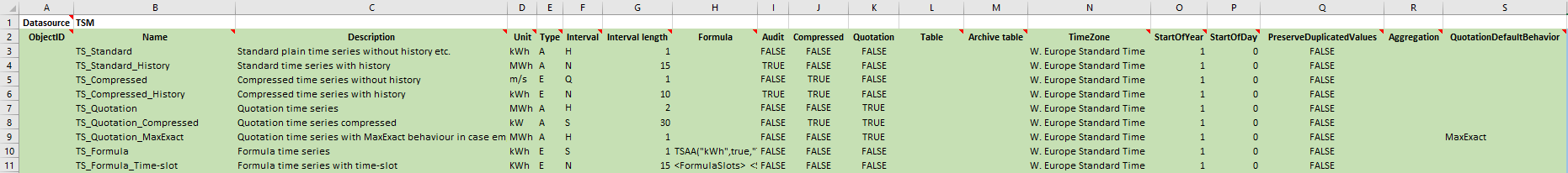

When importing new data, the ObjectID has to stay empty and the Name is not already existent in the data base.

Re-Import of Time Series Master Data After Editing

After a “Time Series Master Data Export” like described above, the time series categories which have been read to Excel can be edited.

Changes can be read from Excel and saved to the data base by clicking the button “Import”.

If data is re-imported from Excel (existing data in the data base is updated) the ObjectID has to stay the same and shall not be edited (For more information see: Time series Master Data).

Time Series Administration

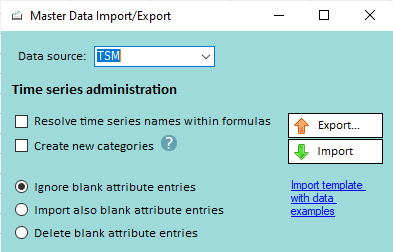

Additional settings can be made for the import of time series master data:

Add categories
If this checkbox is active, attributes of type "category" will be saved to the database, if they have not already existed.

Note: This will work for attributes of type "category" only! All other types attributes that are to be assigned via master data import must already be saved on the database!
Ignore blank attribute entries
This option is selected by default. It means, that time series, that do not have an entry in the column of an attribute will not be assigned this attribute.

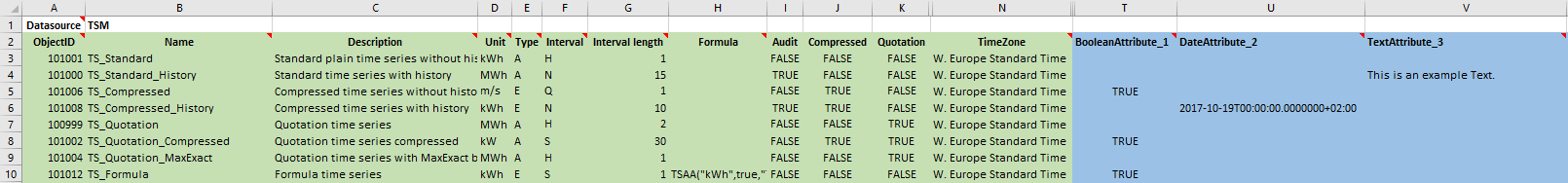

In the example above "Doc_TS_1" would be assigned "An_attribute", "Doc_TS_2" would not. Both of them would be assigned "A_category".
Import also blank attribute entries
If this option is selected, time series, will also be assigned attributes, when the relevant column is empty.
In the example above both time series would be assigned "An_attribute", but only "Doc_TS_1" would have a value for it.
Delete blank attribute entries
If this option is selected, the time series will be unassigned their attributes, if the relevant column is empty.
In the example above this would mean, that "Doc_TS_2" would loose "An_attribute".
